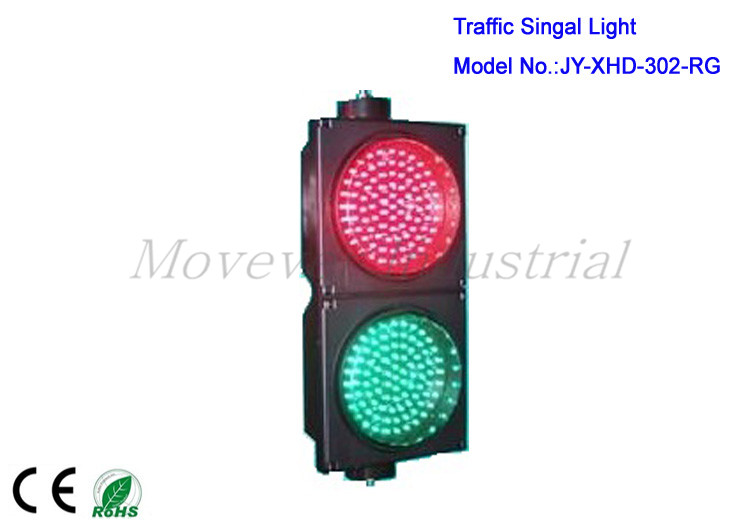

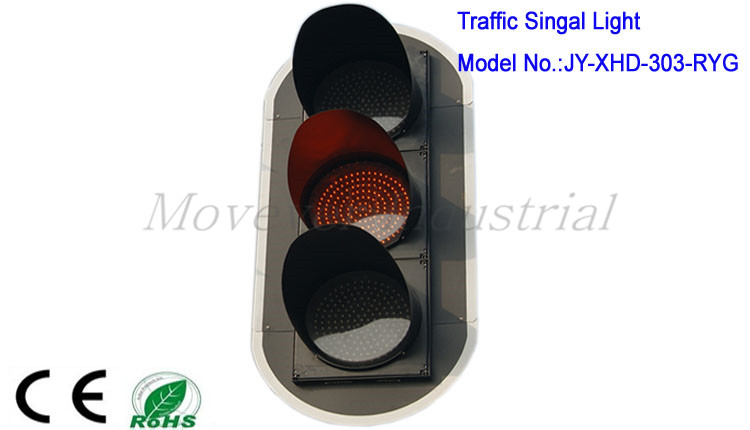

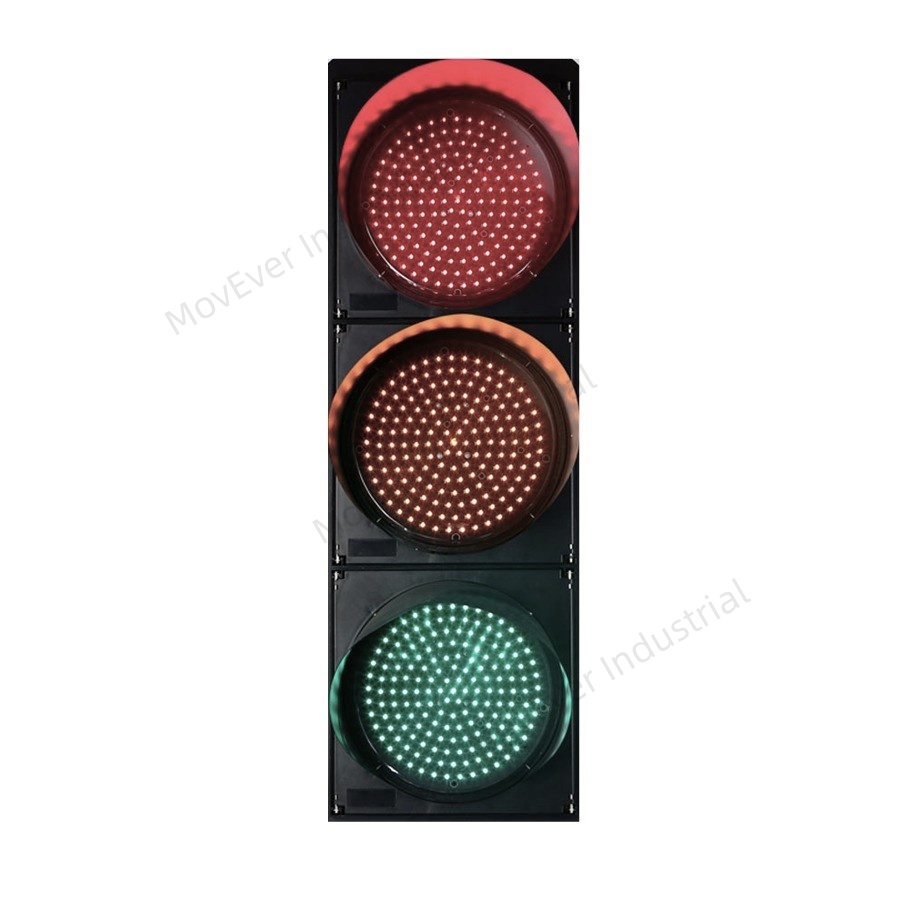

JY-XHDSY-302/303/304CLL-XXX
Technical Data
| Description | LED Roadway Signal Light (driveway / vehicle) | Regular type (clear lens) | ||
Model Number | JY-XHDSY-302/303/304CLL-XXX | |||
| Product Dimensions | Diameter 300 mm | |||
| Voltage | AC85-265V 50/60Hz | |||
| Color | Red / Yellow / Green | |||
| Red | Light intensity | ≥600 cd | ||
| Wavelength | 620±5nm | |||
| Power Consumption | ≦12W | |||
| Beam angle: | 30 degree | |||
| Yellow | Light intensity | ≥600 cd | ||
| Wavelength | 590±5nm | |||
| Power Consumption | ≦12W | |||
| Beam angle: | 30 degree | |||
| Green | Light intensity | ≥1000 cd | ||
| Wavelength | 505±5nm | |||
| Power consumption | ≦12W | |||
| Beam angle | 30 degree | |||
| Visible Distance | >500 m | |||
| Housing Material | PC (plastic anti-UV material) | |||
| LED Average Life Time | ≥100000 H | |||
| Working Temperature | -20-80 ℃ | |||
| Ingress Protection | IP54 | |||
