(JY-DDJF1-13 / 23X)-Double Sides Road Marker / Road Stud / Solar Products

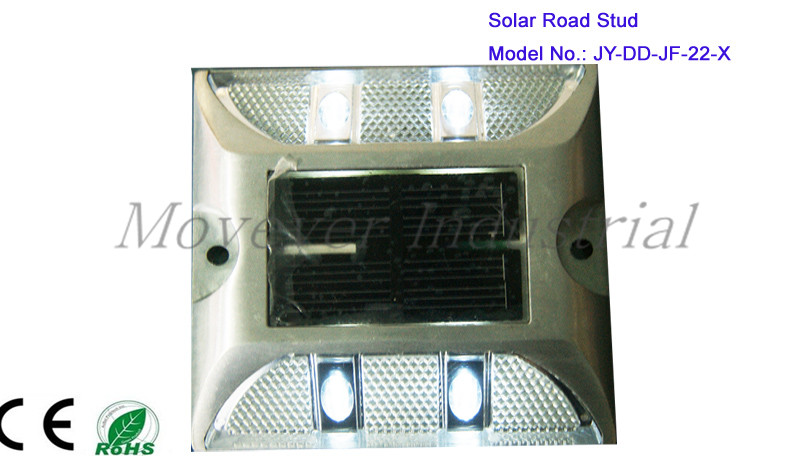

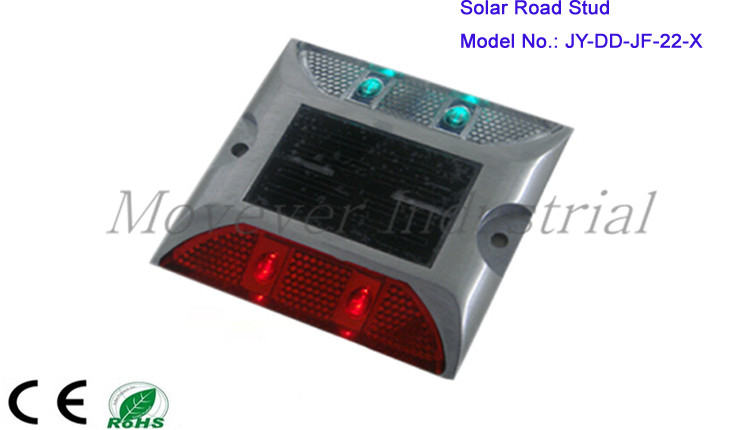

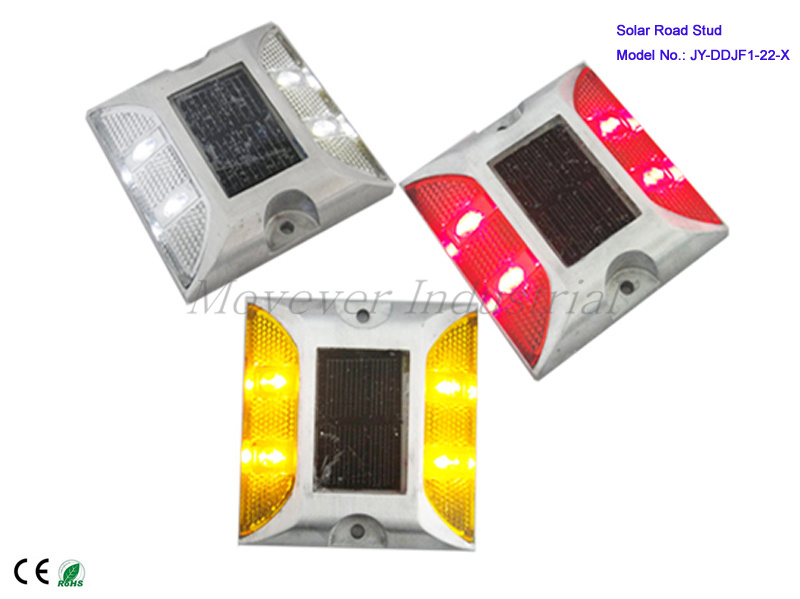

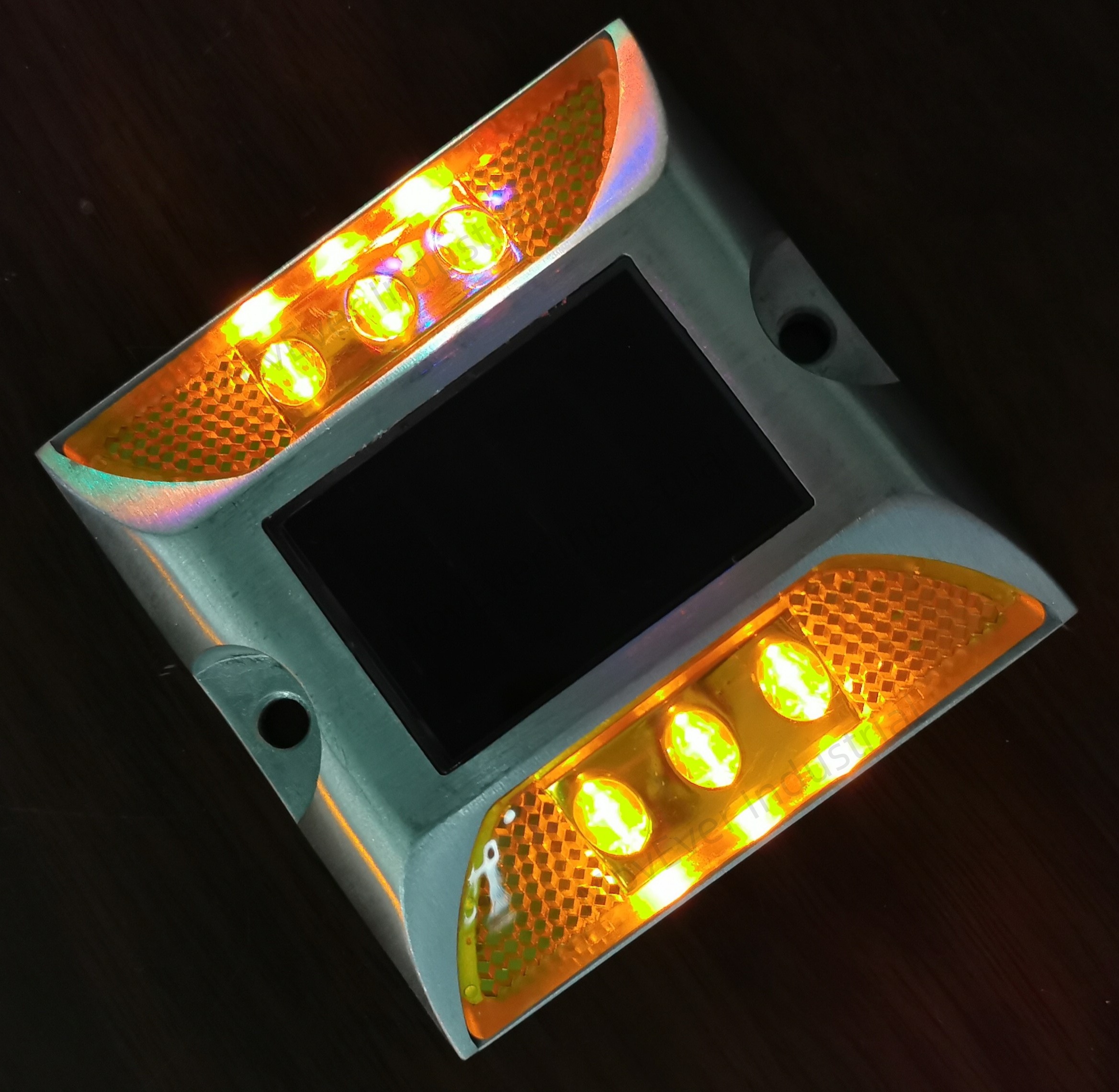

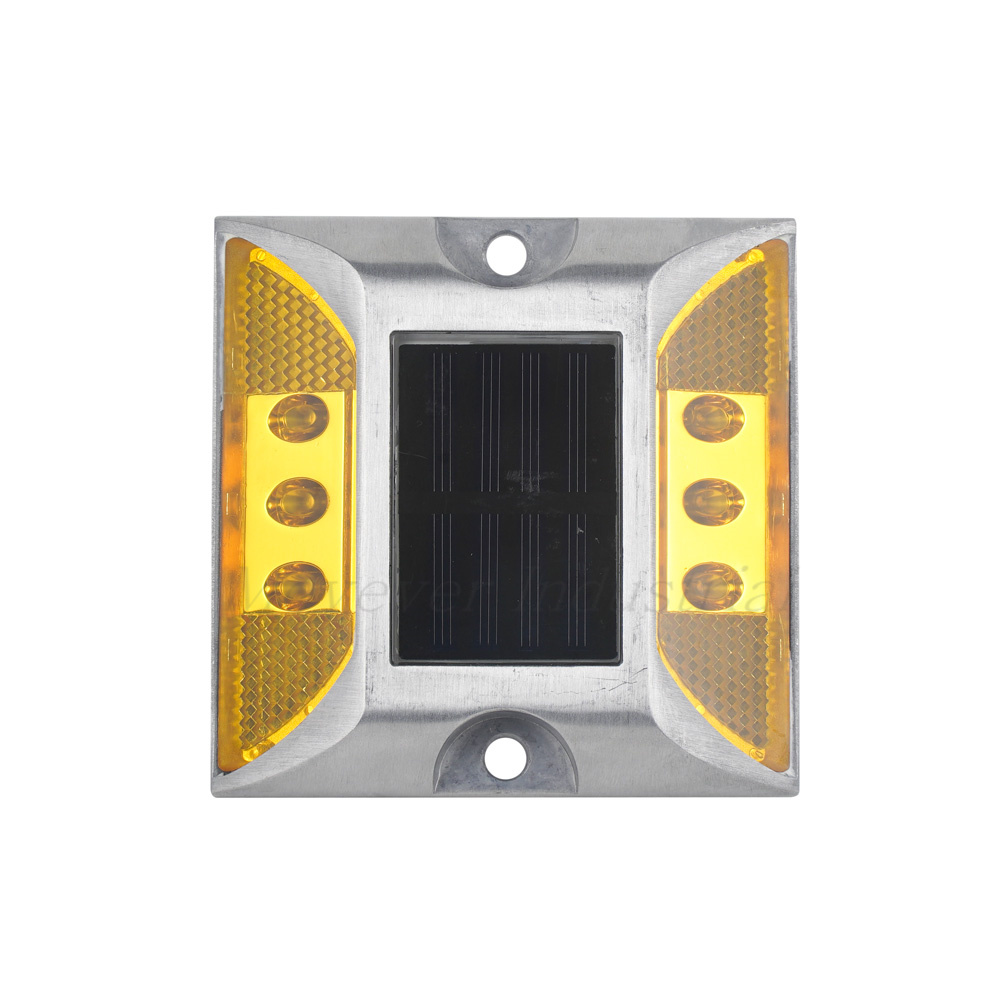

Double side, aluminum alloy, solar road stud. 3 LED for each side optional.Flashing or steady light working mode optional.
Inquiry
  • Content details

JY-DDJF1-13 / 23X


Product   SpecificationRemark
DescriptionSolar Road Stud (square shape)This type includes 6 different sizes
Model NumberJY-DDJF1-13 / 23X
Product   Dimension105*105*23H mm
PowerMaterial Mono-crystalline   silicon solar cell
Voltage2V
Battery‌High-Temp resistant   NI-MH battery
LED Quantity2 / 3 pcs per   side
Color Red/white/yellow/green/blue
Frequency2Hz±20% flash or steady   light
Visible   Distance>800 m
Working Time100h after fully charged   (flash)
Light   Intensity8000~10000 mcd
Starting Light   Intensity<500 Lux
Main MaterialAluminum alloy
Lifespan3 Years
Working   Temperature-20-60
Resist   CompressionUp to 10 ton (statics)
Ingress   ProtectionIP67
Net Weight320 g

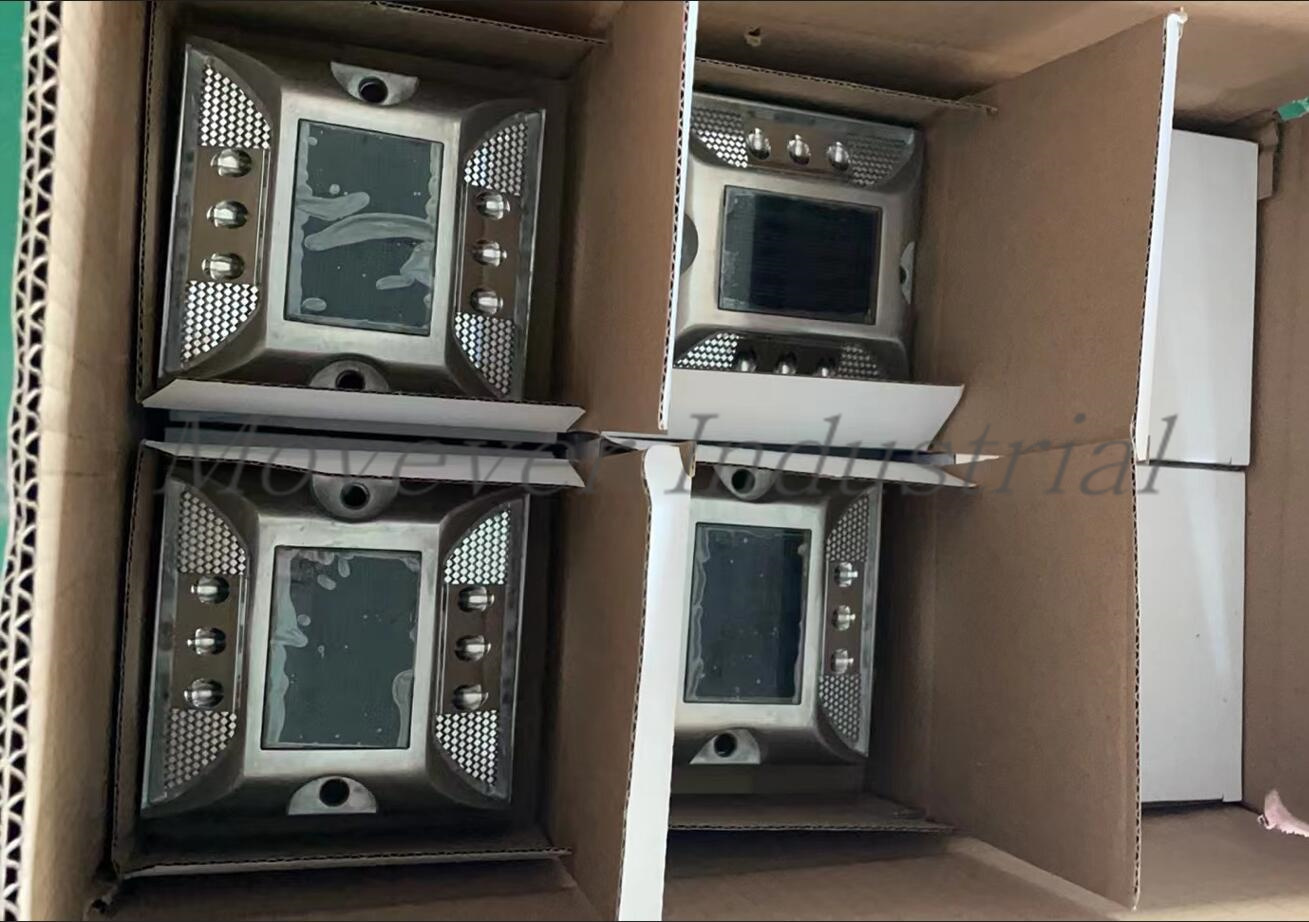

Packing60 pcs/carton / 39 x 29 x   27 cm

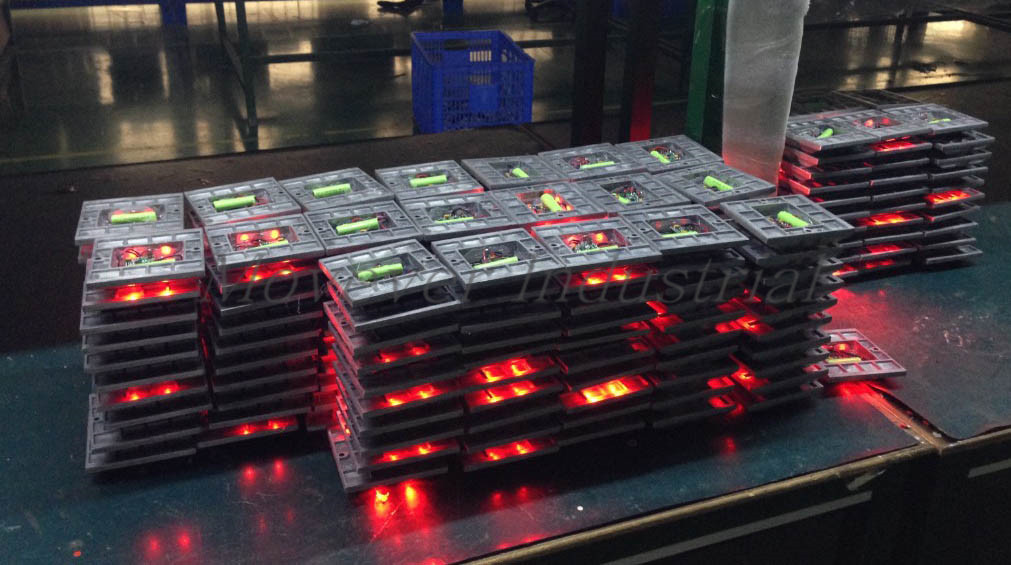

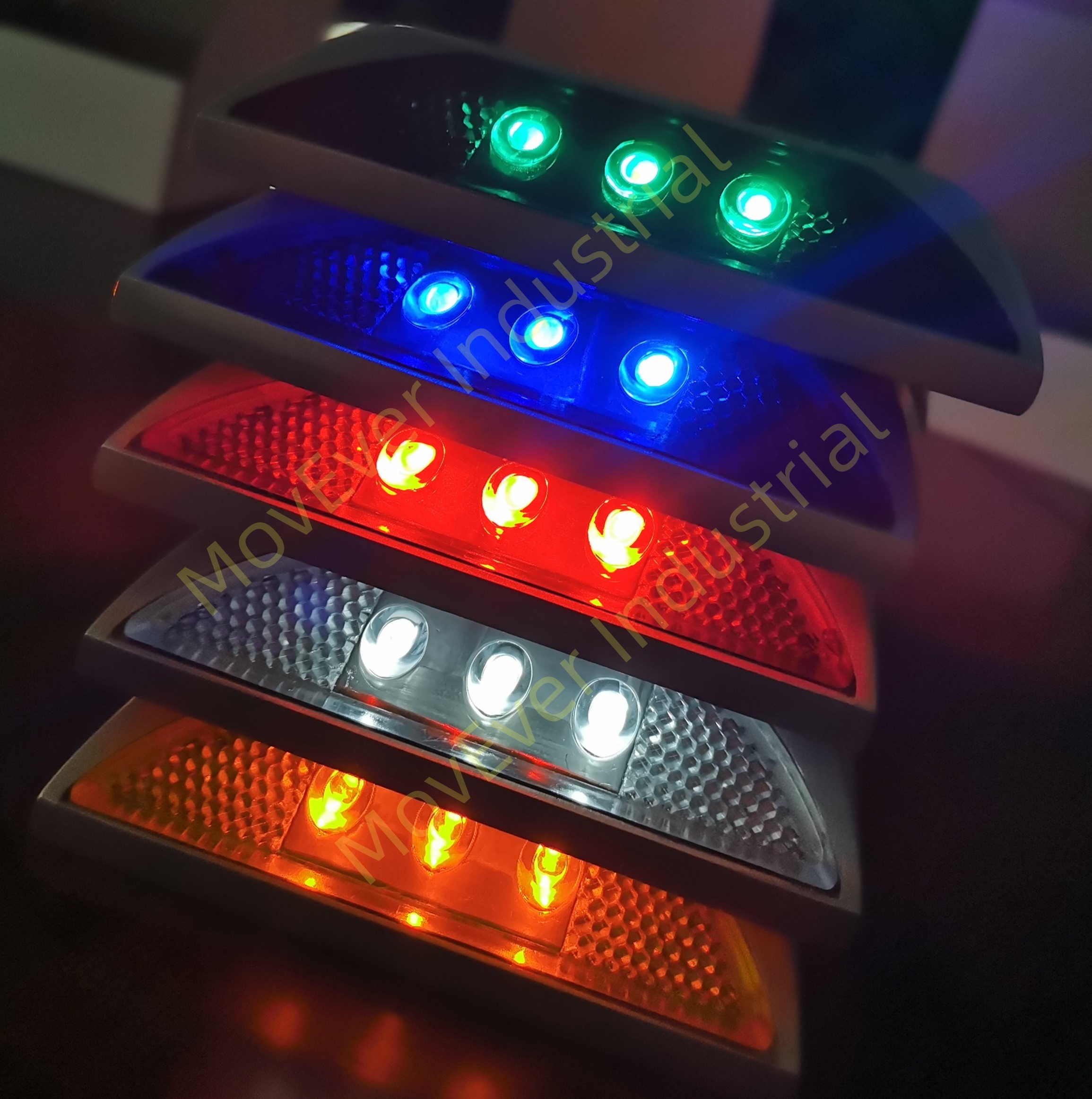

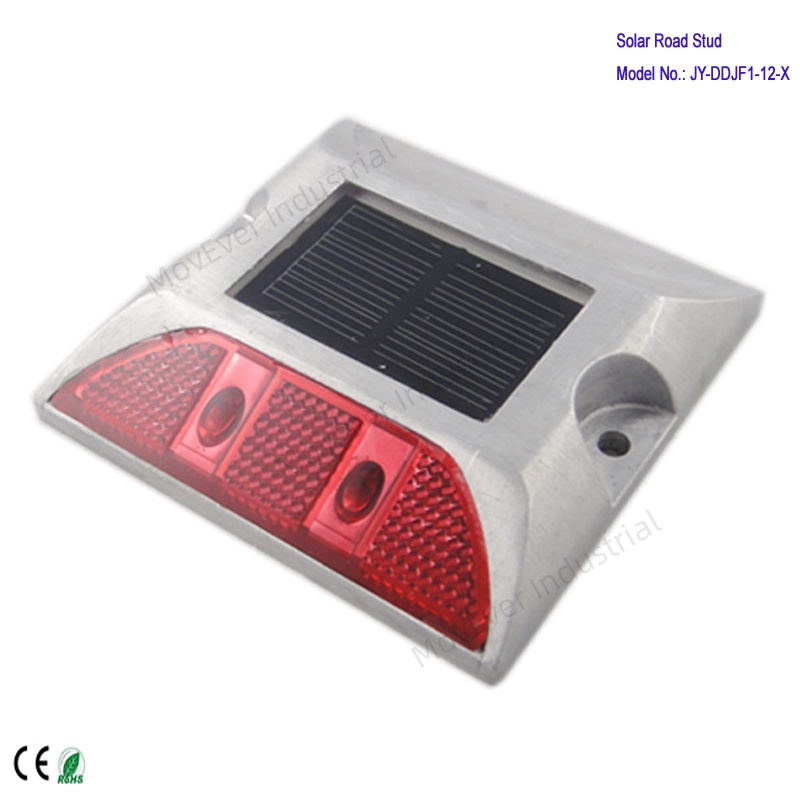

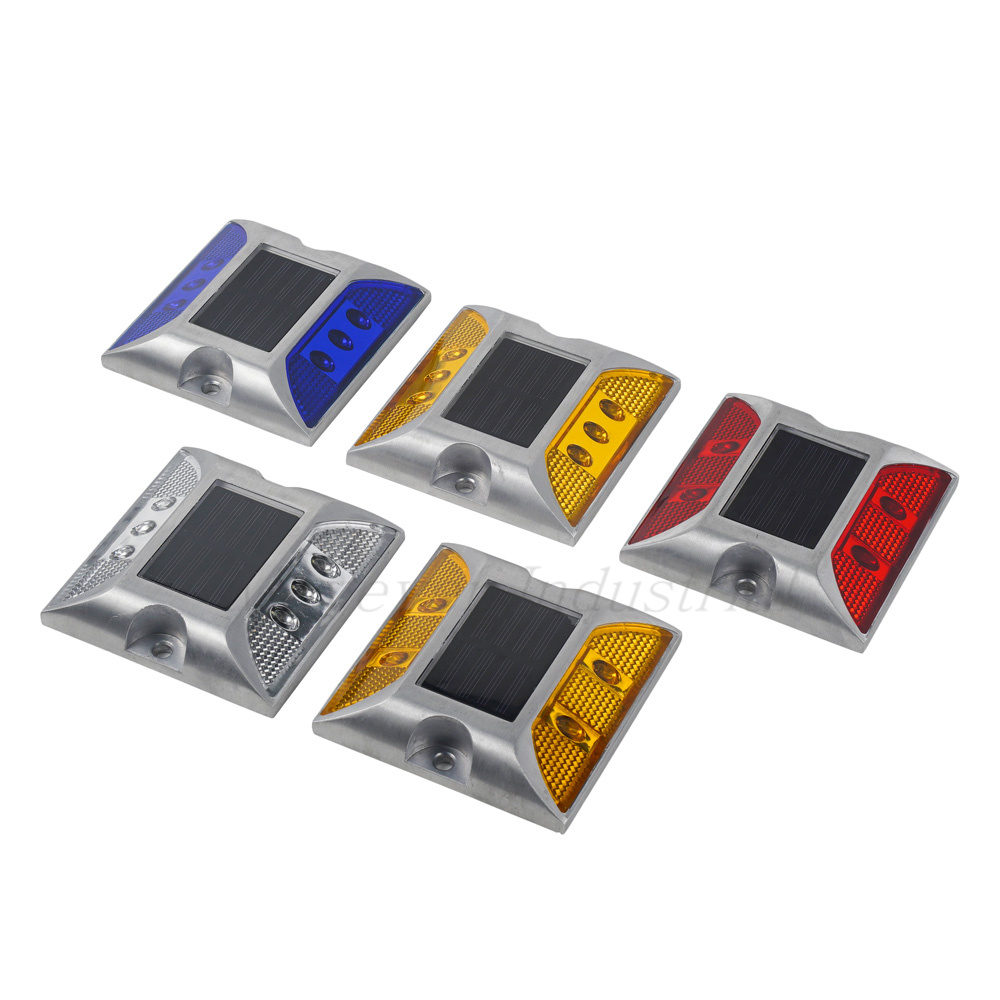

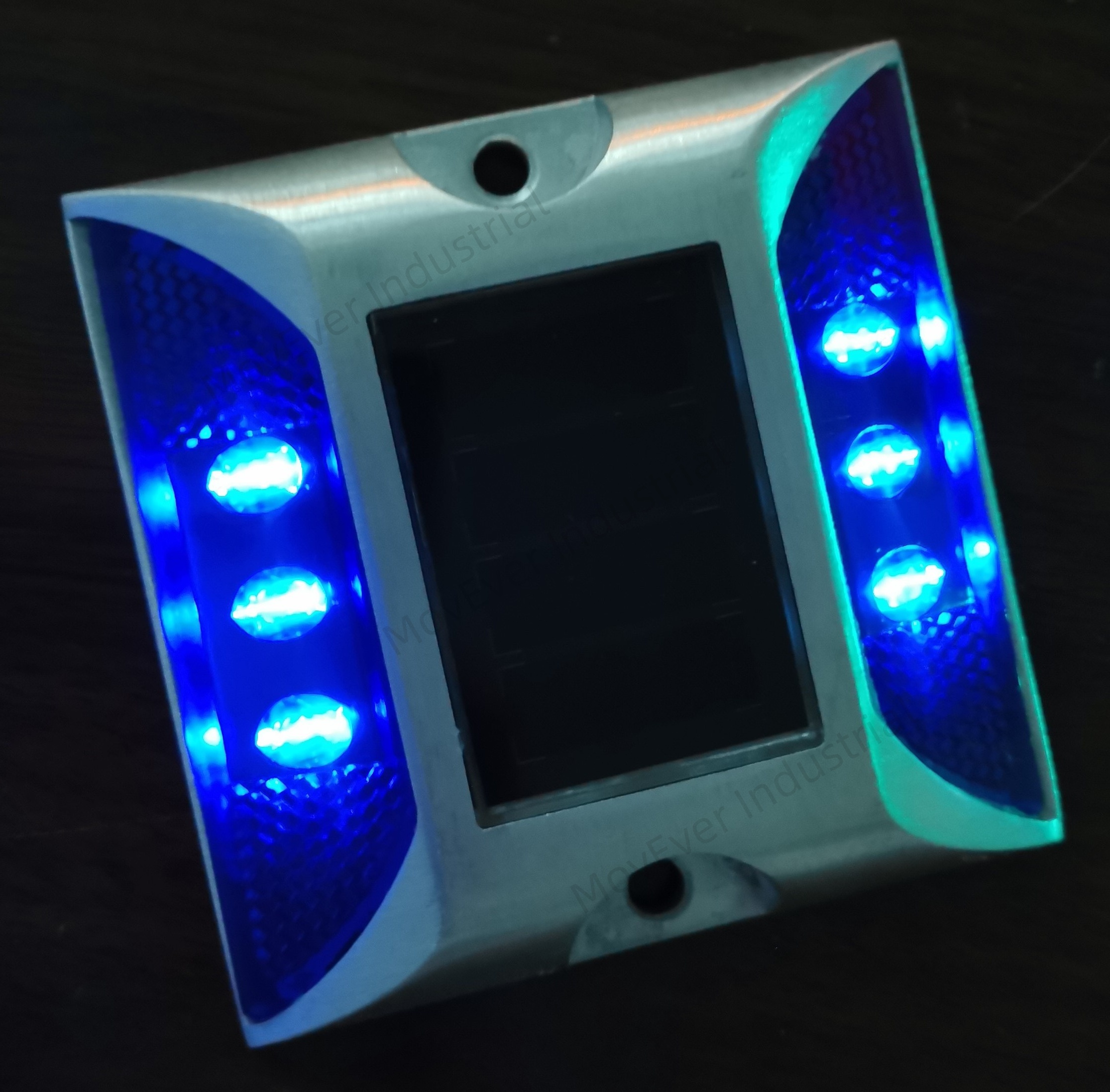

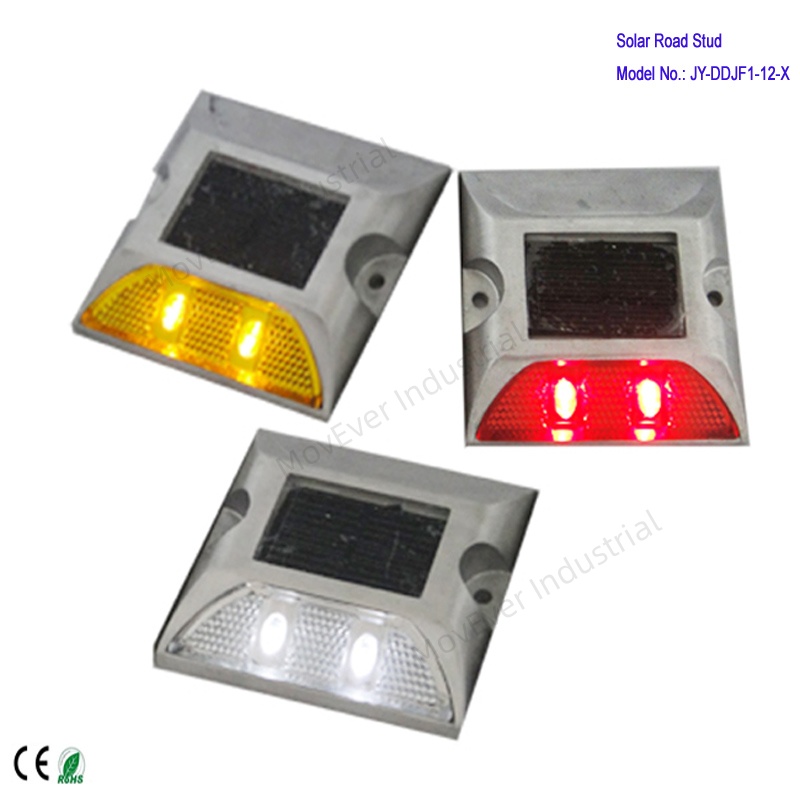

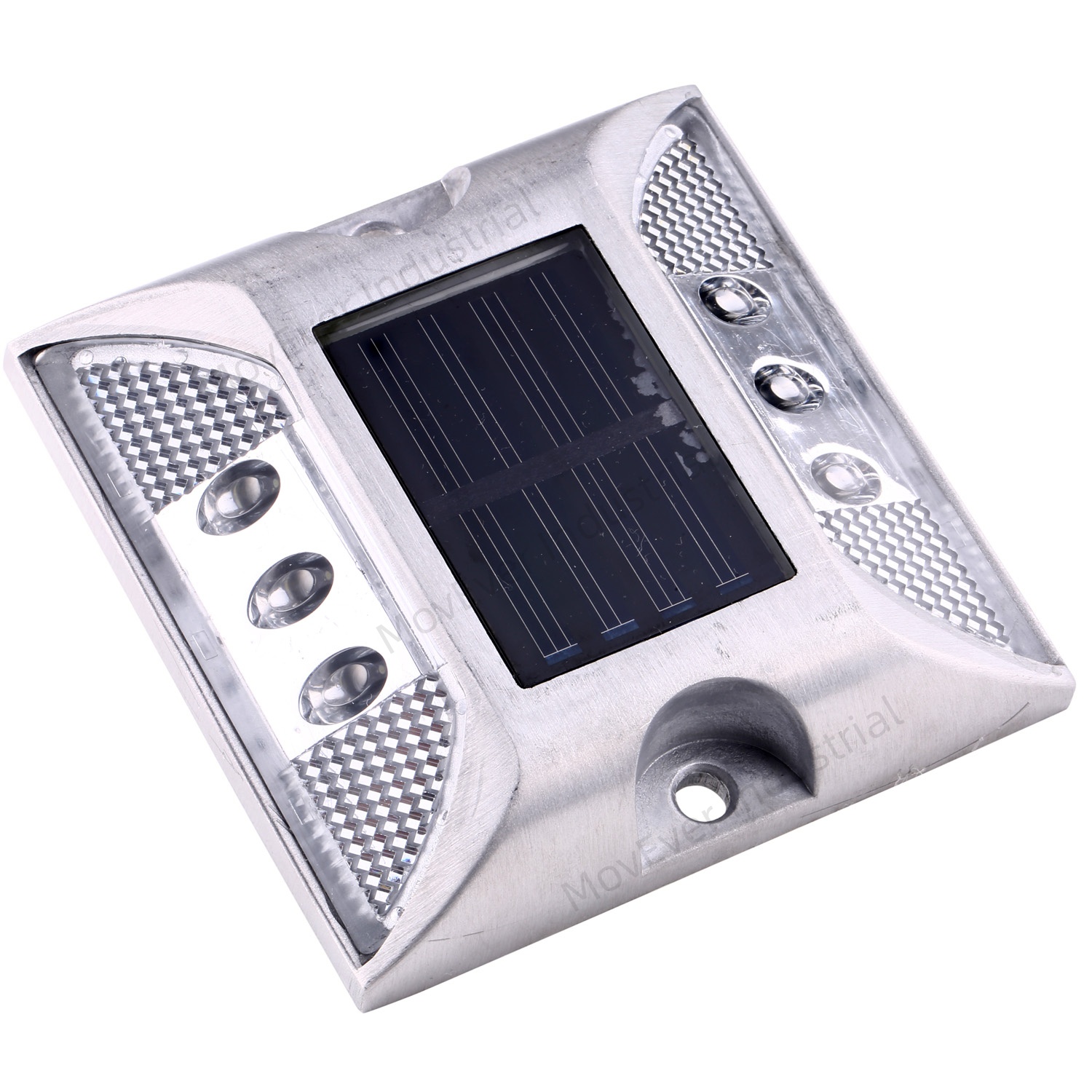

Double Side Road Marker / Road Safety / Solar Products(图1)

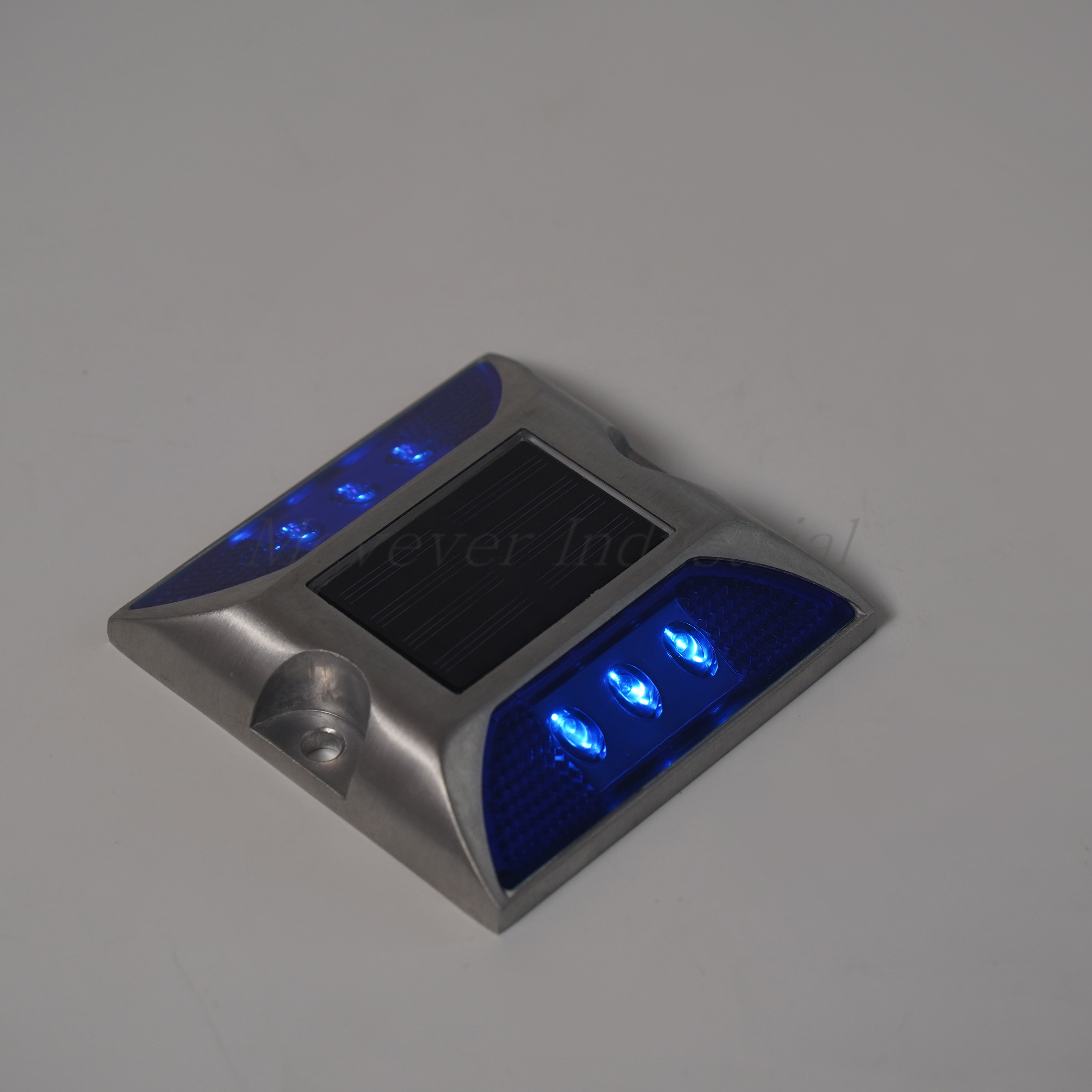

Double Side Road Marker / Road Safety / Solar Products(图2)

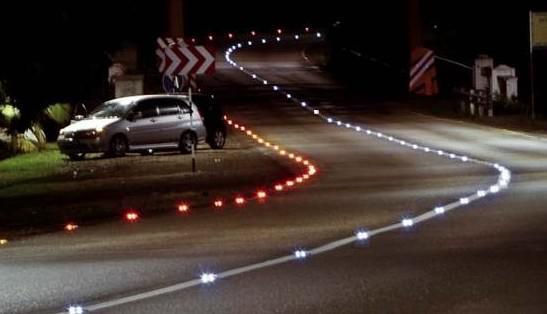

application 23 道钉 通用.jpg

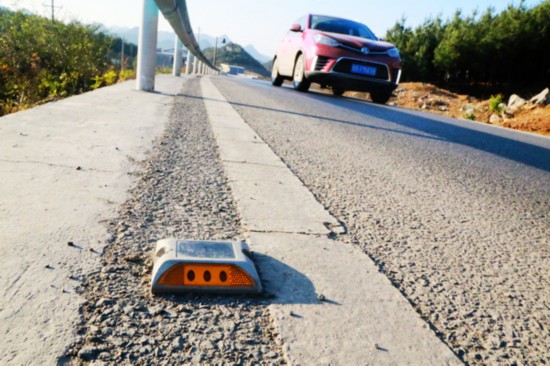

application 26 道钉 金属方形.jpg
